| Category | Part Series | Features |

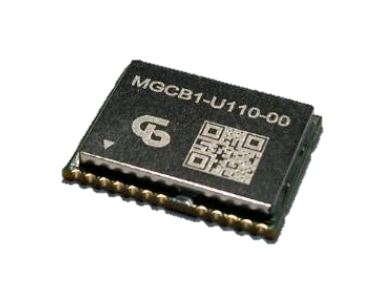

| RF模組>L1+L5雙頻模組 (1216) | MGCB1-U110-00 | 1. L1 and L5 band GNSS receiver 2. Support GPS, LONASS, Galileo, BeiDou, QZSS 3. Support Max. 135 channel(L1 75+L5 60) 4. Time to First Fixed (TTFF) 5. Max 10Hz update rate 6. Integrate low noise amplifier (LNA) 7. Integrate high rejection filter 8. Integrate DC blocking in RFin 9. Signal voltage supply 10. UART interface 11. Low power consumption 12. ESD protection 13. Small and Standard module package (1612) 14. Suport SMD process 15. RoSH/REACH Compliance |
